Always match the correct conductor size to the electrical load it will carry. Using a gauge too small can cause overheating and lead to dangerous situations, while an oversized conductor adds unnecessary cost. A good starting point is checking the manufacturer’s specifications for the device or appliance you’re wiring. These typically include the required amperage, which is the main factor in choosing the right conductor.
Temperature also plays a key role in determining the proper size. Conductors lose their capacity to safely carry current as ambient temperatures rise. Many charts will specify the amp rating at various temperatures, and adjusting for temperature differences is a crucial step in avoiding failure.
Common errors arise when individuals overlook factors like insulation type and installation conditions. Always ensure the conductor is rated for its intended environment, whether exposed to heat, moisture, or other hazardous conditions. Adhering to the recommended limits for each wire type will help maintain the integrity of the electrical system.
Using a Conductor Sizing Table for Safe Electrical Installations

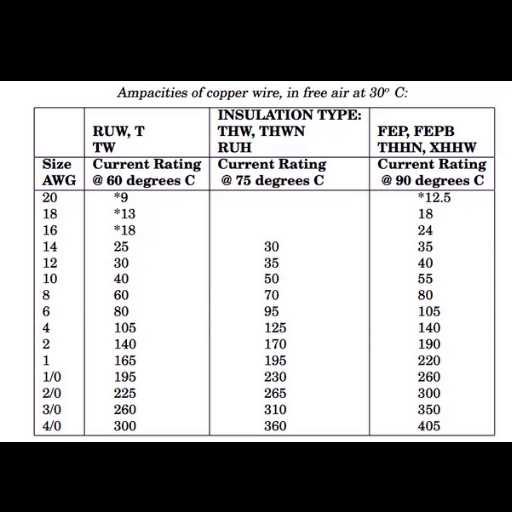

When selecting the appropriate conductor for electrical installations, always cross-reference the required amperage with the specific conductor’s current-carrying capacity. Each conductor type has its limits, and exceeding these limits can lead to overheating or even fires. Refer to a reliable table that lists conductor sizes alongside their respective amp ratings under various temperature conditions.
One key factor in choosing the correct conductor is ensuring the rating matches the electrical load of the connected device. A common mistake is choosing a conductor based solely on the amperage listed for the device. Always account for additional factors like insulation type and installation environment, which can influence the conductor’s performance.
Temperature directly affects the current-carrying ability of conductors. Higher ambient temperatures reduce the amount of current a conductor can safely transport. For example, at 30°C, a 12 AWG conductor may handle up to 20 amps, but at 40°C, its safe capacity might decrease. Adjust your selection based on local temperature conditions to avoid failures.
- Consult tables that factor in temperature adjustments for accurate sizing.
- Always match the conductor’s capacity with the expected load.
Another consideration is the length of the conductor. The longer the conductor run, the greater the voltage drop, which can lead to inefficiency or failure. To combat this, it may be necessary to use a larger conductor size for longer distances. Ensure the table you reference includes voltage drop allowances based on conductor length.
For optimal results, check both the type of insulation and the environmental conditions where the conductor will be installed. Certain insulation types are better suited for high temperatures, while others offer better protection against moisture. Matching insulation type to installation conditions ensures the conductor performs as expected throughout its service life.
Avoid using a conductor size that’s too small for the job, even if it meets the amperage requirement. Small conductors may heat up faster, risking damage to insulation and, in extreme cases, leading to fire hazards. A proper sizing guide will give clear, easy-to-read ratings for each conductor type, helping you make the safest decision.
- Ensure the insulation type suits your environmental conditions.
- Check voltage drop adjustments when using long conductor runs.
- Confirm the conductor’s temperature rating matches installation conditions.
Finally, ensure your chosen conductor is compatible with all other components in the system. If other system parts are not rated for high currents, even the correctly sized conductor will not guarantee safety. Always use a complete, system-wide approach to electrical planning and installation.
How to Choose the Right Conductor Gauge Using a Sizing Table
To select the correct conductor size, first determine the amperage of the device or circuit it will be connected to. Cross-reference this value with the current-carrying capacity of available conductor sizes. Make sure the conductor can handle the required load without exceeding its thermal limits.
Next, consider the temperature where the conductor will be used. Temperature affects the capacity of the conductor to safely carry current. For instance, a conductor rated for 20 amps at 75°C may only be rated for 15 amps at 90°C. Check the sizing table for adjustments based on ambient temperature.
If the installation is outdoors or in a location with extreme conditions, factor in the conductor’s insulation type. Different insulation materials have different heat resistance and mechanical strength. For example, THHN insulation is suitable for dry environments, while XHHW is better for wet or high-temperature areas. Refer to your table to match insulation type with environmental conditions.
Another important step is considering the length of the conductor. The longer the conductor, the greater the voltage drop over the distance. For longer runs, choose a larger gauge conductor to compensate for this voltage loss. Some sizing tables include voltage drop calculations, so ensure to review these figures if you are working with long distances.
Be aware that the sizing table will typically provide ratings for different types of installations, such as open-air or buried wiring. Each installation method will have different temperature ratings and derating factors. Always choose the proper table for your specific installation method.
Finally, avoid oversizing the conductor. While it may seem safe to choose a conductor with a much higher rating than needed, it can lead to inefficiencies and unnecessary costs. A properly sized conductor will perform efficiently without the added expense of an oversized one.
