To ensure accurate and secure threading, always match the appropriate hole size with the corresponding pitch. This combination guarantees proper thread engagement, preventing stripping or weak connections. Start by measuring the diameter of the bolt or screw and consult a reliable table to find the exact drilling size needed for the thread type you intend to create.
Standard Hole Sizes: For general use, the size of the hole should be smaller than the full diameter of the thread, allowing for enough material to form the threads around the insert. For metric threads, ensure that the hole diameter is slightly smaller than the outer diameter of the bolt for optimal thread formation.
Pitch Accuracy: The thread pitch plays a critical role in the strength of the connection. A finer pitch is often used for precise or smaller components, while a coarser pitch provides more strength for larger bolts. Always match the correct pitch with the respective hole size to avoid complications during installation.
Additional Tips: Keep in mind that for certain materials, adjustments in hole size might be necessary to account for material properties, such as hardness or flexibility. For materials like aluminum or brass, a slightly larger hole may be needed to ensure easy thread insertion without damaging the material.
Accurate Sizing for Threads and Holes
For correct hole sizes, it’s critical to match them with the corresponding thread dimensions. These measurements are determined by the material type, thread pitch, and diameter. A well-organized table is indispensable for quickly finding the appropriate hole size for any given bolt size, ensuring the threading process goes smoothly without issues like cross-threading or undercutting.
Consider keeping a ready reference on hand for common hole sizes needed for standard thread cuts. For instance, a typical size for a 1/4-20 UNC bolt requires a hole diameter of 0.257 inches. For finer thread types, such as 1/4-28, the required diameter will be slightly smaller, around 0.244 inches. This helps prevent excess clearance or resistance, both of which can compromise the final fit.
Not all materials have the same tolerance for variations in hole size. Soft metals like aluminum may allow for slight discrepancies without noticeable problems, but harder materials like steel or titanium require more precision. A guide that specifies tolerances can be a helpful tool to avoid mistakes when working with materials that are sensitive to miscalculations.
Always ensure your selection table includes metric equivalents for global projects. For instance, a 6mm bolt might correspond to a 5.1mm hole, while a 12mm bolt would typically use a 10.2mm hole. This makes the process smoother, especially when working with both imperial and metric systems. A quick glance at this reference will save both time and potential frustration in cross-system conversions.
Choosing the Right Drill Size for Tapping Threads
The drill size should correspond directly to the thread size, ensuring proper thread formation. A common guideline is to select a hole diameter that is about 75% of the outer thread diameter for most standard tap sizes. This helps create the correct depth for the threads, ensuring they grip effectively without excess material removal.
For instance, when working with a metric M6 thread, use a 5mm hole size. If the thread is coarse, the required hole may be slightly larger. It’s important to consider the specific thread pitch, as finer threads typically require a larger hole to prevent issues like cross-threading.
Choosing a slightly smaller hole for finer threads may increase the risk of the tap binding, making it difficult to cut threads cleanly. On the other hand, larger holes can weaken the material’s structural integrity and reduce the grip of the threads. Check the manufacturer’s recommendations to align the hole size with the desired thread strength.
For tapered threads, such as NPT (National Pipe Thread), the hole size should account for the increased taper. Typically, a 1/4″ NPT requires a 0.410″ hole. For precision work, always use a gauge to confirm the tap will work correctly before proceeding with mass production.
The type of material also plays a role in determining the correct hole diameter. Harder metals like stainless steel may require a slightly larger hole to reduce the risk of excessive tool wear. Softer metals like aluminum can handle a tighter fit, leading to more precise threads without unnecessary clearance.
Remember that choosing the correct size also depends on the tap design. Spiral taps may require a different hole size than straight taps. Spiral taps are often used in blind holes and may need a slightly larger hole to allow the chips to clear more easily during the threading process.

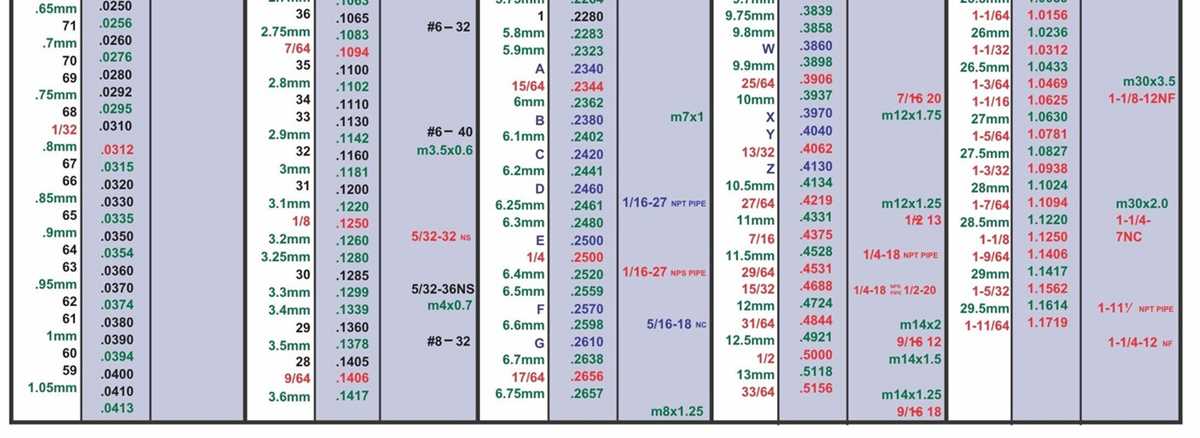

Consulting a reliable table or guide that lists recommended hole sizes for various thread types and materials will reduce errors and ensure that threads are cut with the correct fit, avoiding problems in assembly or function.
